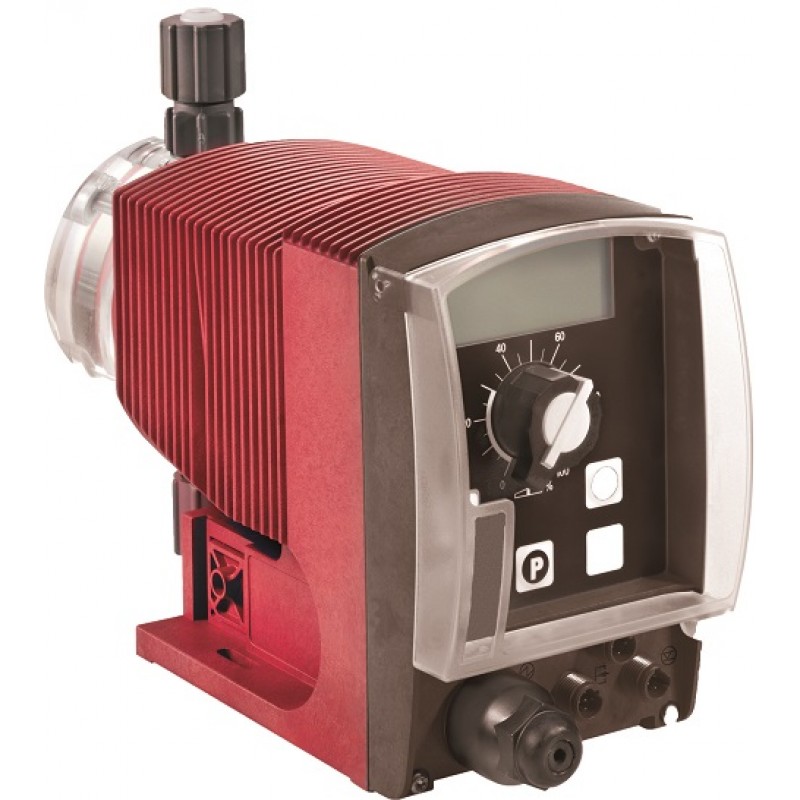

CHEWATEC DS III is an universal solenoid membrane dosing pump with simple operation of dosing using manual mode or controlled by signal cable with visualisation on the LC display. The dosing pump CHEWATEC DS III enables very good quality of process with repeatablity 2%.
Dosing head | Suction/discharge valve | Ball seat | Seals | Balls | |
PPE | Polypropylene | Polypropylene | EPDM | EPDM | ceramic |
PPB | Polypropylene | Polypropylene | FPM | FPM | ceramic |
NPE | Acrylic | PVC | EPDM | EPDM | ceramic |
NPB | Acrylic | PVC | FPM | FPM | ceramic |
NPT | Acrylic | PVDF | PVDF | PTFE | ceramic |
PVT | PVDF | PVDF | PVDF | PTFE | ceramic |
TTT | PTFE with carbon | PTFE with carbon | ceramic | PTFE | ceramic |
SST | Stainless steel no. 1.4404 | Stainless steel no. 1.4404 | ceramic | PTFE | ceramic |
Pump type | Capacity at max. back pressure | Capacity at medium back pressure | Connector | Suction lift | ||||
bar | l/h | ml/Hub | bar | l/h | ml/Hub | mm | mWs** | |
OPDa1000 | 10 | 0,74 | 0,07 | 5 | 0,82 | 0,08 | 6x4 | 6 |
OPDa1601 | 16 | 1,10 | 0,10 | 8 | 1,40 | 0,13 | 6x4 | 6 |
OPDa1602 | 16 | 2,10 | 0,19 | 8 | 2,50 | 0,24 | 6x4 | 6 |
OPDa1005 | 10 | 4,40 | 0,41 | 5 | 5,00 | 0,46 | 8x5*** | 6 |
OPDa0708 | 7 | 7,10 | 0,66 | |||||
|
Typové označenie |
Zariadenie |
Materiál |
Špecifikácia |
|
DS-I-1 |
CHEWATEC DS I |
PP |
7 bar, 3 l/h |
|
DS-I-2 |
CHEWATEC DS I |
PVDF |
7 bar, 3 l/h |
|
DS-I-3 |
CHEWATEC DS I |
PVDF |
16 bar, 2 l/h |
